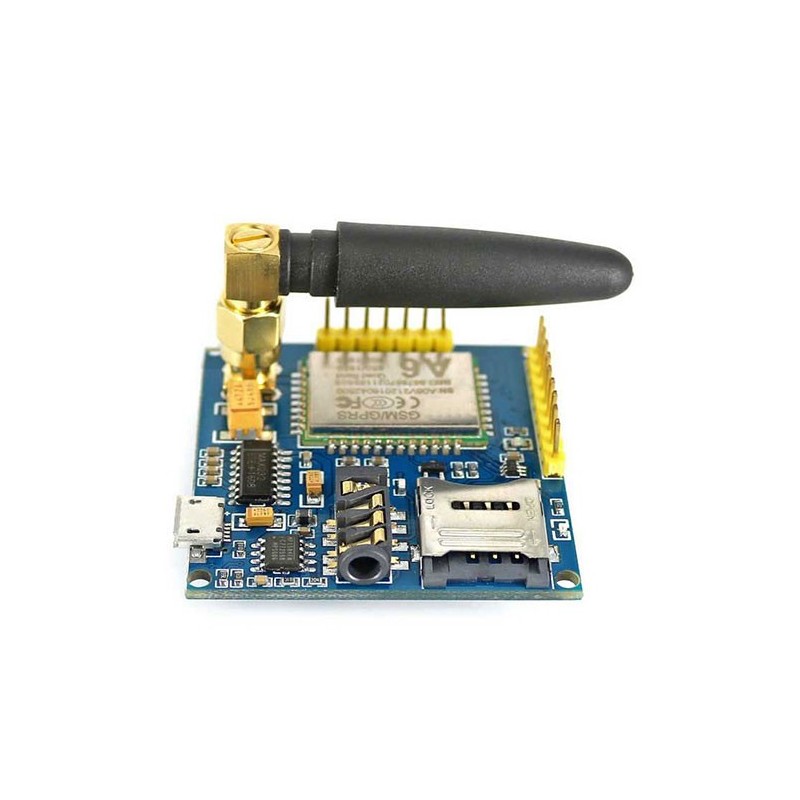

GPRS A6

ماژول GSM/GPRS با تراشه A6 و قابلیت پشتیبانی از 4 کانال 850/900/1800/1900 MHz  برای ارسال دیتا ، SMS,MMS  و برقرای تماس صوتی می‌باشد. ماژول GSM/GPRS با تراشه A6 دارای پروتکل ارتباط UART و پشتیبانی از ولتاژ در محدوده 3.3 تا 4.2 ولت DC، همچنین ماژول GSM/GPRS با تراشه A6 دارای بلوتوث داخلی جهت تبادل اطلاعات می‌باشد.

کتابخانه آردوینو و دیتاشیت ماژول GSM با تراشه A6 در قسمت دانلودها در همین صفحه قرار دارد.

GPRS module wireless module, also known as, simply, is to achieve TTL Serial Communication Switch

GPRSwireless communication module. Using a mobile phone SIM card and the network operator’s GPRS wireless long-distance data transmission.

GPRS module can use the device without network, without WIFI field environment, interact with the server data.

UART Transparent transmission
Similar to GPRS DTU, popular talk is, no matter what is the serial transmission, A6 module as a channel to transfer the contents to pass intact to set a good server. On the contrary, the effect is the same transmission server.

GPRS module available in the market must support proprietary protocols, and A6 as a simple GPRS transparent transmission module, the program has matured standard GSM07.07,07.05 AT commands and Ai-Thinker extended commands can get started quickly and shorten the development cycle , reduce the threshold.

Features:
Competitive price!
Compact size, 22.8×16.8×2.5mm
Ultra-small size
Easy to use DTU
Industrial level GPRS
Can use SMS to config module
Support up to 8 channels network connections
Low power consumption: standby least is 3mA
Wide operating temperature range
A6 semi-hole technology, enabling rapid production modules through standard SMT equipment, providing customers with highly reliable connection, especially for automation, large-scale, low-cost modernization of production methods.
Ideal solution for M2M applications
Automotive
Industrial and PDA
Personal tracking
Ppower environmental monitoring
Wireless POS
Smart metering
Other M2M applications , to provide comprehensive GSM / GPRS text messaging, voice and data transmission services.
Features of GPRS:
Wide coverage: GPRS have good coverage, is the world’s prevailing 2G communication standards. Basically the phone can call the place by GPRS wireless Internet access;
Forever Online: as long as the activated GPRS applications will remain online, similar to a wireless line network services.
By the amount of the charge: GPRS services, though to be online, but you do not have to worry about the cost issue; because only generated when traffic accounting.
High-speed transmission: GPRS currently supports peak transfer rate of 85.6Kbps, the theoretical peak transfer up to more than 100 Kbps
